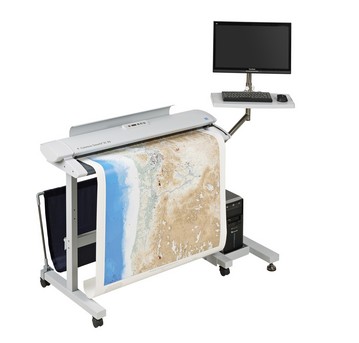

Øèðîêîôîðìàòíûé ñêàíåð Colortrac SmartLF SC 36c Color

Ìîäåëü: øèðîêîôîðìàòíûé ñêàíåð Colortrac SmartLF SC 36c Color

Òèï: öâåòíîé ñêàíåð

Ìàêñèìàëüíàÿ øèðèíà èçîáðàæåíèÿ: 36in (91.4cm)

Ìàêñèìàëüíàÿ òîëùèíà íîñèòåëÿ: 0.08in (2mm)

Ñêîðîñòü ñêàíèðîâàíèÿ: 6.0in (152mm) x 6.0in (152mm)

Îïòè÷åñêîå ðàçðåøåíèå: 1200dpi

Ðàñøèðåííîå ðàçðåøåíèå: 9600dpi

Òåõíè÷åñêèå õàðàêòåðèñòèêè

Upgradeable c - e

Optical Resolution 1200dpi

Interpolated Resolution 9600dpi

Max Scan Width 36in (91.4cm)

Max Media Width 38in (96.5cm)

Max Media Thickness 0.08in (2mm)

Min Document Size 6.0in (152mm) x 6.0in (152mm)

Max Scan Length Depends on file format and software application. See scanner software information

Accuracy +/-0.1% +/-1 pixel

Auto Size Display Detects and displays the width of the document as it is loaded (mm or inches)

Imaging Technology SingleSensor

Data Capture (color/grayscale) 48-bit/16-bit

Color Space RAW RGB/sRGB

Scan Speed 1-bit mono (in/sec) @200dpi 13.00

Scan Speed 8-bit grayscale (in/sec) @200dpi 13.00

Scan Speed 24-bit color (in/sec) @200dpi 3.0

Paper Path Face-up, front entry, rear exit or rewind to front

Face-up, front entry, rear exit with optional Document Return Guide

Interface SuperSpeed USB 3.0 data transfer rates up to 85MB/sec

Optimised USB2 transfer rates up to 35MB/sec

Power Requirements External power supply 100~240 VAC autosensing +/-10%, 50-60 Hz

Scanner power consumption 53W (scanning) 5W (standby)

Operating conditions 10oC – 35oC, 35% – 80% RH non-condensing

Weight & Dimensions (WxHxD) Scanner: 52.9lbs (24kg) 45in x 6in x 15in (114.8 x 15.2 x 38.1cm)

Packaged: 60.6lbs (27.5kg) 50.6in x 9.3in x 20.1in (128.5cm x 23.6cm x 51.1cm)

Operating System and Interface(s) Windows 8, Windows 7, Windows Vista, Windows XP* 32-bit and 64-bit architectures with USB3 or USB2 interface

Certifications CB, CE, FCC, CCC, UL, RoHS compliant. ENERGY STAR® qualified

Included Software SmartWorks EZ Touch – SCAN/COPY/PRINT/EMAIL software – supports TIFF, JPEG & PDF for Touch enabled screen or regular mouse and keyboard

ISIS interface driver giving EDM/EDC capability (2013)

Optional Software SmartWorks EZ Touch Plus – Extends the editing toolset and USB control of the

EZ Touch’in-the-box’ standard scan software

SmartWorks Pro SCAN & COPY software – industry leading,professional scanning and color-copying software

SmartWorks Pro SCAN software – industry leading, professional scanning software

SmartWorks Pro COPIER software – industry leading, professional color-copying software

Accessories Floor stand – includes media catch basket

PC Mounting Option for Floor Stand – accepts monitor, keyboard & PC)

Repro Stand – adjustable height to fit most popular LF Printers. Includes Keyboard Tray, Flat Screen mounting kit & PC support tray

Paper Return Guide (36) – curved fitment to redirect flexible scanned document forward to Operator. Can be easily removed when not required or for scanning non-flexible media

Notes * USB3 is not available with Windows XP computers. SC Series scanners with XP must be connected via USB2. The scanner may need to be slowed down for high scan resolutions and/or wider documents. No extra interface cable is required. This is a limitation of Windows XP. Thick documents up to 2mm must be flexible. Colortrac does not guarantee quoted speeds for thick media. Thick media should be scanned at reduced speeds to obtain optimal image quality. For heavy and/or thick materials the operator may need to support the document as it enters and exits the scanner. For larger sizes of heavy and/or thick media Colortrac recommend the scanner be placed first on a flat surface and the operator support the document as it enters and exits the scanner. Colortrac recommends the Paper Return Guide be removed when using heavy and/or thick media in the scanner.
